Southern Pacific Freight Car Specification Sheet 6

Mechanical Refrigerator cars - 1964

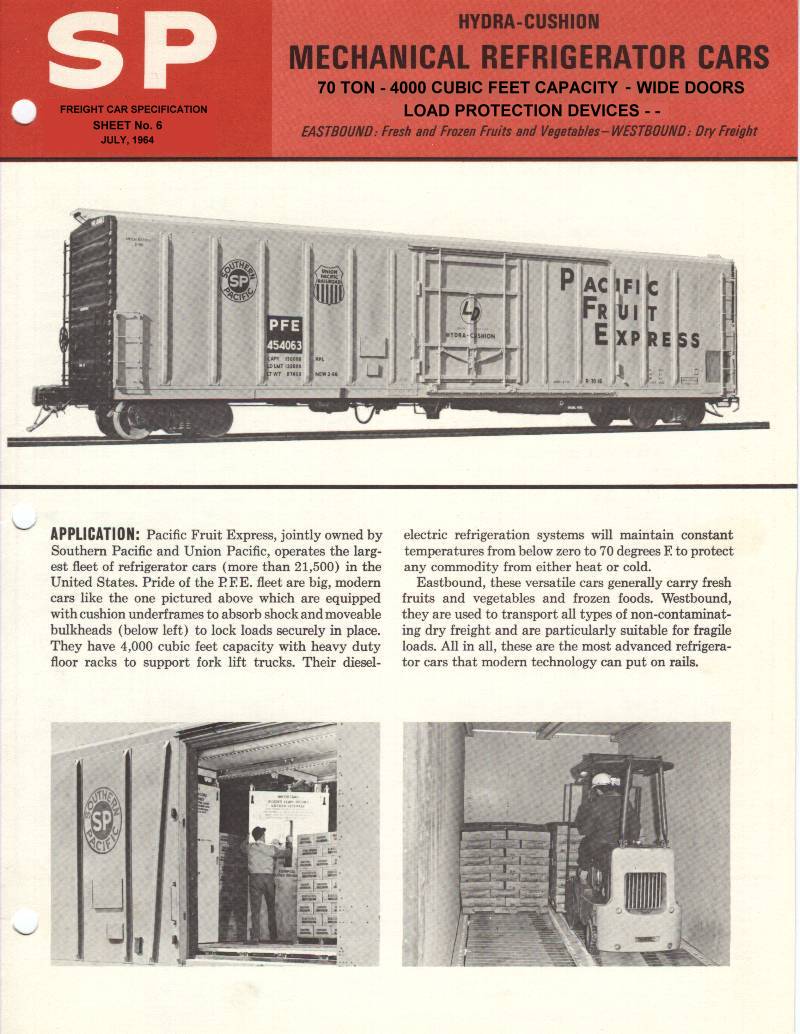

Page 1


Page 2

Car Series
Numbers
P.F.E.
No.
of Cars
Capacity Inside Dimensions Outside Dimensions Door Opening Load Protection Devices
Cubic Feet Nominal
Pounds
Average
Light
Weight
Average
Load Limit
See heavier Loading Footnote (1)
Length Width Height Length (2) Width Height Max. Width Max. Height Door Arrangement
PFE 450001
to 450200
200 4,000 130,000 84,700 135,300 50' 0" 9' 0" 8' 10" 61' 1" 10' 6" 15' 1" 8' 0" 8' 7" Single Plug Equipco
PFE 450201
to 450350
150 4,000 130,000 85,800 134,200 50' 0" 9' 0" 8' 10" 61' 1" 10' 6" 15' 1" 8' 0" 8' 7" Single Plug Preco
PFE 450351
to 450650
300 4,000 130,000 85,800 134,200 50' 0" 9' 0" 8' 10" 61' 1" 10' 6" 15' 1" 8' 0" 8' 7" Single Plug DF-B
PFE 450651
to 450800
150 4,000 130,000 85,800 134,200 50' 0" 9' 0" 8' 10" 61' 1" 10' 6" 15' 1" 8' 0" 8' 7" Single Plug Preco
PFE 450801
to 451000
200 4,000 130,000 84,700 135,300 50' 0" 9' 0" 8' 10" 61' 1" 10' 6" 15' 1" 8' 0" 8' 7" Single Plug Equipco
PFE 451001
to 451155
155 4,022 130,000 86,600 133,400 50' 0" 9' 0" 8' 11" 61' 1" 10' 6" 15' 1" 9' 0" 8' 8" Single Plug Preco
PFE 451156
to 451500
345 4,022 130,000 86,600 133,400 50' 0" 9' 0" 8' 11" 61' 1" 10' 6" 15' 1" 9' 0" 8' 8" Single Plug Equipco
PFE 451501
to 451645 (3)
145 4,022 135,000 81,300 138,700 50' 0" 9' 0" 8' 11" 59' 4" 10' 6" 15' 1" 9' 0" 8' 8" Single Plug Preco
PFE 451646
to 451995 (3)
350 4,022 135,000 81,300 138,700 50' 0" 9' 0" 8' 11" 59' 4" 10' 6" 15' 1" 9' 0" 8' 8" Single Plug Equipco
PFE 451996
to 452000 (3)
5 4,022 135,000 81,300 138,700 50' 0" 9' 0" 8' 11" 59' 4" 10' 6" 15' 1" 9' 0" 8' 8" Single Plug Preco (one-piece)
  1. Heavier loads are permitted when shipments move only on Southern Pacific lines (including Cotton Belt) and certain connecting carriers. For information, contact your nearest Southern Pacific Traffic representative.

  2. Coupled length may be obtained by adding 30" to the outside lengths shown.

  3. Cars are equipped with FreightMaster cushioning device.
