Southern Pacific Freight Car Specification Sheet 25
MULTI-LEVEL AUTOPACK CARS - 1965
Tri-level & Bi-level - Cushion Devices

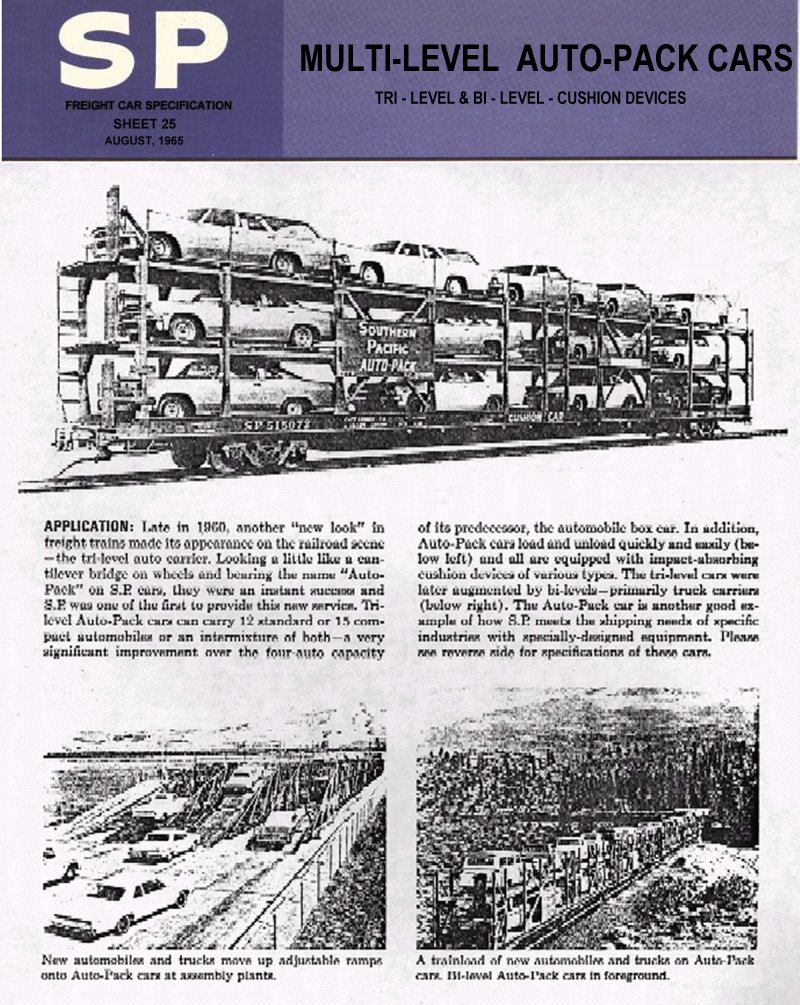

Page 1
'Engineered' from Sheet 25A and the data from a photocopy of Sheet 25

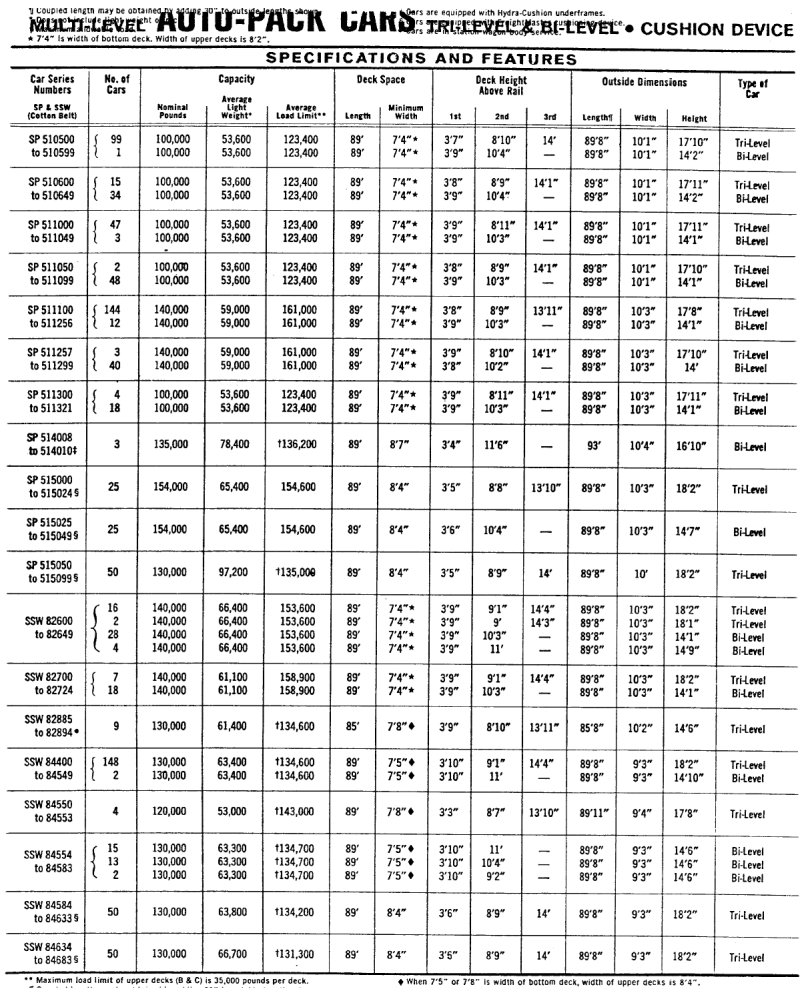

Page 2
| SPECIFICATIONS AND FEATURES |
|---|
Car Series
Numbers
SP & SSW
(Cotton Belt) |
No.
of Cars |
Capacity |
Deck Space |
Deck Height
Above Rail |
Outside Dimensions |
Type of
Car |
Nominal
Pounds |
Average
Light
Weight * |
Average
Load Limit ** |
Length |
Minimum
Width |
(1st) |
(2nd) |
(3rd) |
Length ¶ |
Width |
Height |
SP 510500
to 510599 |
99 |
100,000 |
53,600 |
123,400 |
89' 0" |
7' 4" O |
3' 7" |
8' 10" |
14' 0" |
89' 8" |
10' 1" |
17' 10" |
Tri-Level |
| 1 |
100,000 |
53,600 |
123,400 |
89' 0" |
7' 4" O |
3' 9" |
10' 4" |
-- |
92' 4" |
10' 1" |
14' 2" |
Bi-Level |
SP 510600
to 510649 |
15 |
100,000 |
53,600 |
123,400 |
89' 0" |
7' 4" O |
3' 8" |
8' 9" |
14' 1" |
89' 8" |
10' 1" |
17' 11" |
Tri-Level |
| 34 |
100,000 |
53,600 |
123,400 |
89' 0" |
7' 4" O |
3' 9" |
10' 4" |
-- |
89' 8" |
10' 1" |
14' 2" |
Bi-Level |
SP 511000
to 511049 |
47 |
100,000 |
53,600 |
123,400 |
89' 0" |
7' 4" O |
3' 8" |
8' 11" |
14' 1" |
89' 8" |
10' 1" |
17' 11" |
Tri-Level |
| 3 |
100,000 |
53,600 |
123,400 |
89' 0" |
7' 4" O |
3' 9" |
10' 3" |
-- |
89' 8" |
10' 1" |
14' 1" |
Bi-Level |
SP 511050
to 511099 |
2 |
100,000 |
53,600 |
123,400 |
89' 0" |
7' 4" O |
3' 8" |
8' 9" |
14' 1" |
89' 8" |
10' 1" |
17' 10" |
Tri-Level |
| 48 |
100,000 |
53,600 |
123,400 |
89' 0" |
7' 4" O |
3' 9" |
10' 3" |
-- |
89' 8" |
10' 1" |
14' 1" |
Bi-Level |
SP 511100
to 511256 |
144 |
140,000 |
59,000 |
161,000 |
89' 0" |
7' 4" O |
3' 8" |
8' 9" |
13' 11" |
89' 8" |
10' 3" |
17' 8" |
Tri-Level |
| 12 |
140,000 |
59,000 |
161,000 |
89' 0" |
7' 4" O |
3' 9" |
10' 3" |
-- |
89' 8" |
10' 3" |
14' 1" |
Bi-Level |
SP 511257
to 511299 |
3 |
140,000 |
59,000 |
161,000 |
89' 0" |
7' 4" O |
3' 9" |
8' 10" |
14' 1" |
89' 8" |
10' 3" |
17' 10" |
Tri-Level |
| 40 |
140,000 |
59,000 |
161,000 |
89' 0" |
7' 4" O |
3' 8" |
10' 2" |
-- |
89' 8" |
10' 3" |
14' 0" |
Bi-Level |
SP 511300
to 511321 |
4 |
100,000 |
53,600 |
123,400 |
89' 0" |
7' 4" O |
3' 9" |
8' 11" |
14' 1" |
89' 8" |
10' 3" |
17' 11" |
Tri-Level |
| 18 |
100,000 |
53,600 |
123,400 |
89' 0" |
7' 4" O |
3' 9" |
10' 3" |
-- |
89' 8" |
10' 3" |
14' 1" |
Bi-Level |
SP 514008
to 514010 ‡ |
3 |
135,000 |
78,400 |
† 136,200 |
89' 0" |
8' 7" |
3' 4" |
11' 6" |
-- |
93' 0" |
10' 4" |
16' 10" |
Bi-Level |
SP 515000
to 515024 § |
25 |
154,000 |
65,400 |
154,600 |
89' 0" |
8' 4" |
3' 5" |
8' 8" |
13' 10" |
89' 8" |
10' 3" |
18' 2" |
Tri-Level |
SP 515025
to 515049 § |
25 |
154,000 |
65,400 |
154,600 |
89' 0" |
8' 4" |
3' 6" |
10' 4" |
-- |
89' 8" |
10' 3" |
14' 7" |
Bi-Level |
SP 515050
to 515099 § |
50 |
130,000 |
97,200 |
† 135,000 |
89' 0" |
8' 4" |
3' 5" |
8' 9" |
14' 0" |
89' 8" |
10' 0" |
18' 2" |
Tri-Level |
SSW 82600
to 82649 |
16 |
140,000 |
66,400 |
153,600 |
89' 0" |
7' 4"O |
3' 9" |
9' 1" |
14' 4" |
89' 8" |
10' 3" |
18' 2" |
Tri-Level |
| 2 |
140,000 |
66,400 |
153,600 |
89' 0" |
7' 4"O |
3' 9" |
9' 0" |
14' 3" |
89' 8" |
10' 3" |
18' 1" |
Tri-Level |
| 28 |
140,000 |
66,400 |
153,600 |
89' 0" |
7' 4"O |
3' 9" |
10' 3" |
-- |
89' 8" |
10' 3" |
14' 1" |
Bi-Level |
| 4 |
140,000 |
66,400 |
153,600 |
89' 0" |
7' 4"O |
3' 9" |
11' 0" |
-- |
89' 8" |
10' 3" |
14' 9" |
Bi-Level |
SSW 82700
to 82724 |
7 |
140,000 |
61,100 |
158,900 |
89' 0" |
7' 4"O |
3' 9" |
9' 1" |
14' 4" |
89' 8" |
10' 3" |
18' 2" |
Tri-Level |
| 18 |
140,000 |
61,100 |
158,900 |
89' 0" |
7' 4"O |
3' 9" |
10' 3" |
-- |
89' 8" |
10' 3" |
14' 1" |
Bi-Level |
SSW 82885
to 82894 ¤ |
9 |
130,000 |
61,400 |
† 134,600 |
85' 0" |
7' 8" |
3' 9" |
8' 10" |
13' 11" |
85' 8" |
10' 2" |
14' 6" |
Tri-Level |
SSW 84400
to 84549 |
148 |
130,000 |
63,400 |
† 134,600 |
89' 0" |
7' 5" |
3' 10" |
9' 1" |
14' 4" |
89' 8" |
9' 3" |
18' 2" |
Tri-Level |
| 2 |
130,000 |
63,400 |
† 134,600 |
89' 0" |
7' 5" |
3' 10" |
11' 0" |
-- |
89' 8" |
9' 3" |
14' 10" |
Bi-Level |
SSW 84550
to 84553 |
4 |
120,000 |
53,000 |
† 143,000 |
89' 0" |
7' 8" |
3' 3" |
8' 7" |
13' 10" |
89' 11" |
9' 4" |
17' 8" |
Tri-Level |
SSW 84554
to 84583 |
15 |
130,000 |
63,300 |
† 134,700 |
89' 0" |
7' 5" |
3' 10" |
11' 0" |
-- |
89' 8" |
9' 3" |
14' 6" |
Bi-Level |
| 13 |
130,000 |
63,300 |
† 134,700 |
89' 0" |
7' 5" |
3' 10" |
10' 4" |
-- |
89' 8" |
9' 3" |
14' 6" |
Bi-Level |
| 2 |
130,000 |
63,300 |
† 134,700 |
89' 0" |
7' 5" |
3' 10" |
9' 2" |
-- |
89' 8" |
9' 3" |
14' 6" |
Bi-Level |
SSW 84584
to 84633 § |
50 |
130,000 |
63,800 |
† 134,200 |
89' 0" |
8' 4" |
3' 6" |
8' 9" |
14' 0" |
89' 8" |
9' 3" |
18' 2" |
Tri-Level |
SSW 84634
to 84683 § |
50 |
130,000 |
66,700 |
† 131,300 |
89' 0" |
8' 4" |
3' 6" |
8' 9" |
14' 0" |
89' 8" |
9' 3" |
18' 2" |
Tri-Level |
¶ Coupled length may be obtained by adding 30" to outside length shown.
* Maximum load limit of upper decks (B & C) is 35,000 pounds per deck.
** not certain of text
O 7' 4" is width of the bottom deck. Width of upper decks is 8' 2".
§ possible text: Cars SP 515510-515174 and SSW 84734-84783 are equipped with Freight Saver cushioning, cars SP 515175-515194 have FreightMaster cushioning.
When 7' 5" or 7' 8" is width of bottom deck, width of upper decks is 8' 4"
‡ Possible text: Cars are equipped with FreightMaster cushioning.
† not certain of text
¤ possible text: Cars are in station wagon body service
Notes from Sheet 25A
- Maximum axle load of each deck on all cars listed is 5,000 pounds -- except cars SP 514008-414010 which can accept a 7,000 pound axle load.
- 40,000 lbs. is maximum Deck B load limit when deck height above rail is 10' 10" or below. If deck height above rail is 10' 11" to 12' 7", load limit is 30,000 lbs. Above 12' 7", deck load limit becomes 20,000 pounds.
- Load limit when Deck B is to be loaded to capacity. If Deck B load is below capacity of deck (by 10,000 pounds for example), then Deck A load limit may be increased by 10,000 pounds to 71,500 pounds. If Deck B is not loaded at all, Deck A load limit increases accordingly to a maximum 123,500 pounds
- 57,000 lbs. is the maximum Deck B load limit at 10' 7". At 11' 6", load limit decreases to 52,000 lbs.
- Load limit when upper decks are to be loaded to capacity. If upper decks are loaded below capacity (by 10,000 pounds for example), Deck A load limit may be increased by 10,000 pounds. If upper decks are unused, Deck A load limit may be increased by 40,000 pounds (maximum).
- When Deck A is 7' 4", upper decks have width of 8' 2". When 7' 5" or 7' 8" are shown, upper decks are 8' 4". When Deck A is 8' 4" or 8' 7", upper decks are also 8' 4" and 8' 7".
- Indicates coupled length of car
- Cars are equipped with Hydra-Cushion underframes.
- Cars are equipped with FreightMaster cushioning.
- Cars SP 515510-515174 and SSW 84734-84783 are equipped with Freight Saver cushioning, cars SP 515175-515194 have FreightMaster cushioning.
|
