Southern Pacific
'Cab - Forward'
Class AC-4

10 units built

4100 4101 4102 4103 4104 4105 4106 4107 4108 4109

The first 9 AC-4 class engines were built in 1928 and the last one in 1929 by Baldwin. These had a boiler pressure of 235lbs, a weight of 614,600lbs and a tractive effort of 116,900lbs.

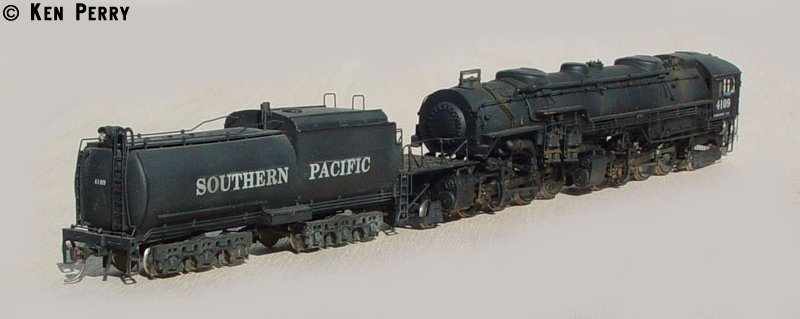

According to a note on the SP lettering drawing dated 12/30/49 all AC class engines assigned to Sacramento, Shasta, Portland, and San Joaquin Divisions shall omit the large SOUTHERN PACIFIC on the tender sides, also F class engines on Shasta Division. Photo evidence shows that this was often but not always the case. Charles Givens

All scrapped by 1955.


  • A Century of SP Steam Locomotives - Guy L. Dunscomb
  • SP Co. Steam Locomotive Compendium - Diebert & Strapac
  • Cab-Forward - Robert J. Church
  • Cab-In-Front (The Half Century Story of An Unconventional Locomotive) - John.B.Hungerford © 1959
    • reprinted by PFM 1974

Modeling choices at the moment are:

  • For N Scale:
    • ?
  • For HO Scale:
    • Broadway Limited AC-4
  • For S Scale:
    • ?
  • For O Scale:
    • ?
